Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Online Message | About us

Product

Your present location:index >> Product classification >> Waterproof switch >>1TS034A

Browse similar products

Next : 1TS015B

product name: Top push SMD3.4*1.7*1.6mm
Product Number: 1TS034A
Material: LCP/SUS301/SUS304/AG
Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,

Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

Panasonic:EVPAT1L1B000,EVPAT2L1B000,EVPATAL1B000
Citizen:LS185 Serie

Item	Tact switch detail	Tact switch detail2	Tact switch detail3
Article number	1TS034A	1TS034A	1TS034A
Model	1TS034A	1TS034A	1TS034A
Series	1TS034	1TS034	1TS034
(LxW) (mm)	3.4mm×1.7mm	3.4mm×1.7mm	3.4mm×1.7mm
(H) (mm)	1.6±0.1mm	1.6±0.1mm	1.6±0.1mm
Installation height (mm)	1.6±0.1mm	1.6±0.1mm	1.6±0.1mm
Operation	Side-press type	Side-press type	Side-press type
Welding type	SMD	SMD	SMD
Live-fire type	Surface mount	Surface mount	Surface mount
Maximum rating	DC 12V/50mA	DC 12V/50mA	DC 12V/50mA
Contact resistance (<mΩ)	500mΩ max.	500mΩ max.	500mΩ max.
Insulation resistance (MΩ at 100V DC)	DC100V 60S 100MΩ min.	DC100V 60S 100MΩ min.	DC100V 60S 100MΩ min.
Withstanding voltage	AC250V(50~60HZ) 60S min.	AC250V(50~60HZ) 60S min.	AC250V(50~60HZ) 60S min.
Response time	10ms 以下 (ON, OFF)	10ms 以下 (ON, OFF)	10ms 以下 (ON, OFF)
Operating force	120gf	160gf	240gf
Stroke	Short strok	Short strok	Short strok
Stroke (mm)	0.12±0.05mm	0.12±0.05mm	0.12±0.05mm
Operating life	200000 or more	200000 or more	200000 or more
Operating temperature	IP67	IP67	IP67
Storage temperature	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Package style	–40℃～+90℃	–40℃～+90℃	–40℃～+90℃
Mini pakage	10000PCS/reel	10000PCS/reel	10000PCS/reel
Mini pakage
CTNS/QTY	12reel/ctn	12reel/ctn	12reel/ctn

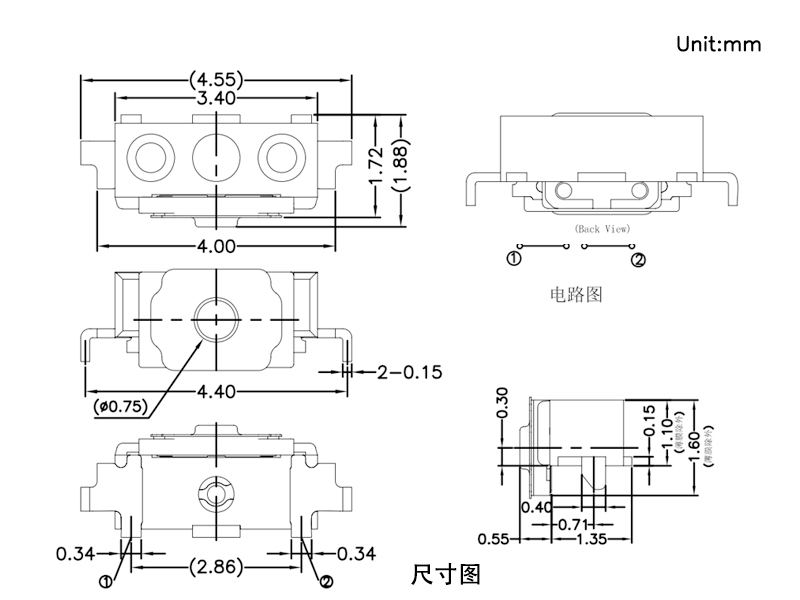

Dimensions:

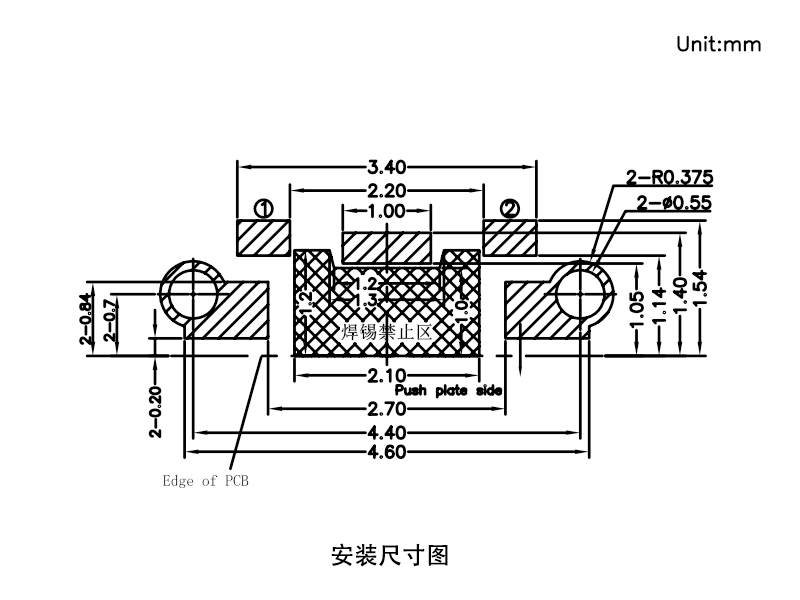

Welding diagram:

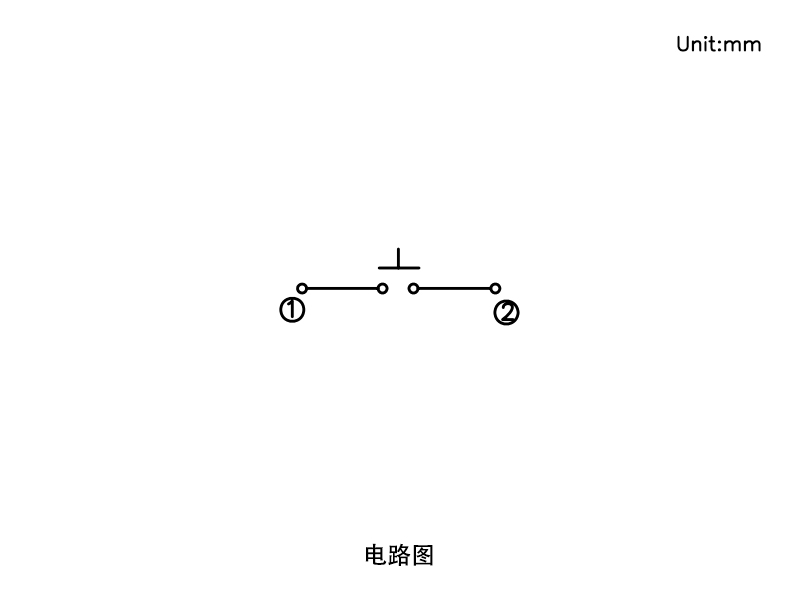

Circuit diagram:

1TS034A_down

Key words : Top push waterproof switch,1TS034A,EVPAT1L1B000,EVPAT2L1B000,EVPATAL1B000,LS185 Serie

Accumunative views:11986
